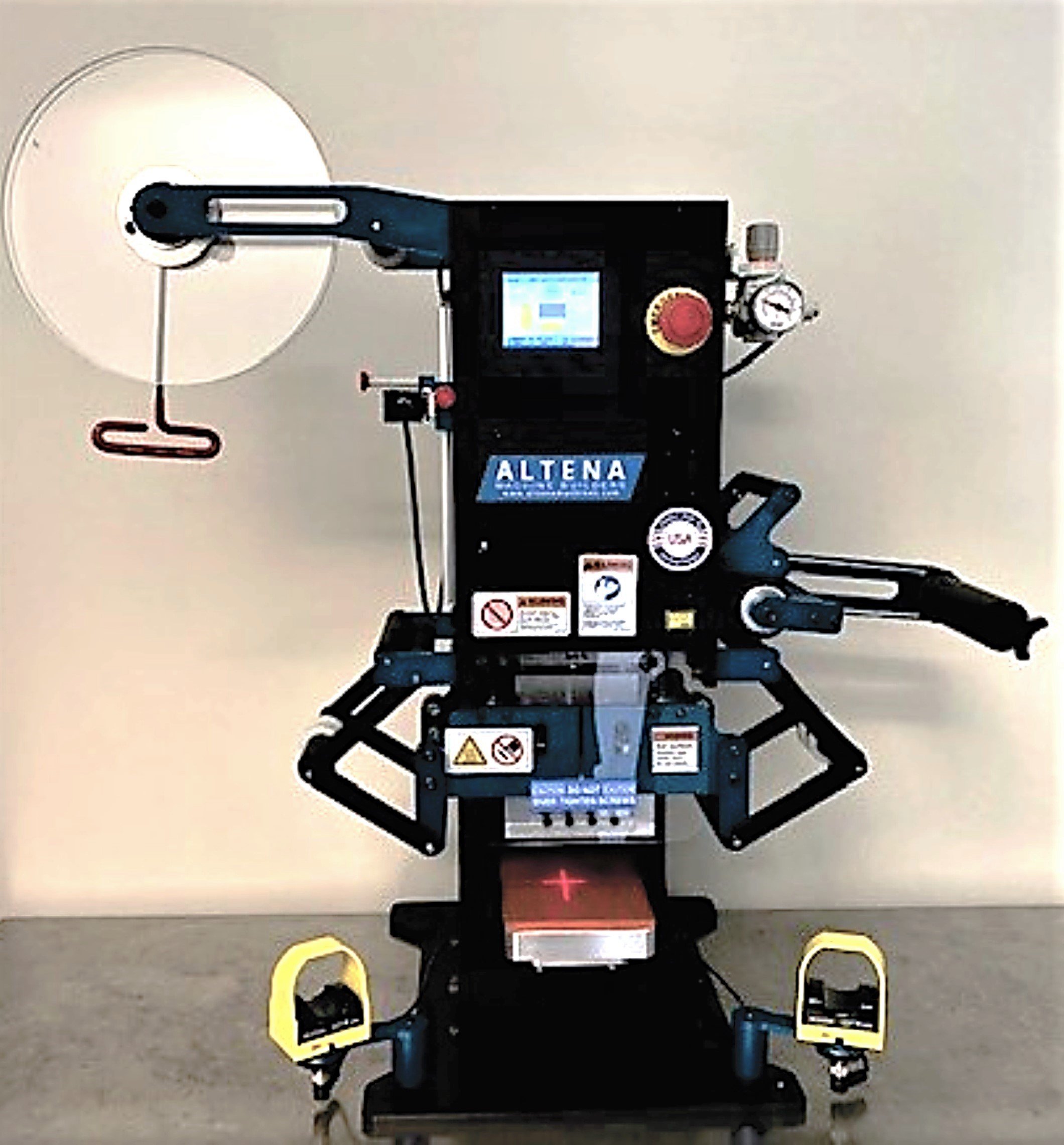

ARM 5x5 AUTOMATIC ROLL MACHINE
Model: ARM 5x5
Heat Block – 5” deep x 5” wide (12.7cm x 12.7cm)
Anvil Size – 5”x 7.50” inches (12.7cm x 19.05cm)
Throat Depth – 9” inches (22.88cm)
Standard machine not fitting your need? No problem! We can modify to your custom requirements! To request a quote, call (760) 636-5951 or click the ”Get A Quote” button and let us know your details. We will get back with you promptly.
Model: ARM 5x5
Heat Block – 5” deep x 5” wide (12.7cm x 12.7cm)
Anvil Size – 5”x 7.50” inches (12.7cm x 19.05cm)
Throat Depth – 9” inches (22.88cm)
Standard machine not fitting your need? No problem! We can modify to your custom requirements! To request a quote, call (760) 636-5951 or click the ”Get A Quote” button and let us know your details. We will get back with you promptly.
Model: ARM 5x5
Heat Block – 5” deep x 5” wide (12.7cm x 12.7cm)
Anvil Size – 5”x 7.50” inches (12.7cm x 19.05cm)
Throat Depth – 9” inches (22.88cm)
Standard machine not fitting your need? No problem! We can modify to your custom requirements! To request a quote, call (760) 636-5951 or click the ”Get A Quote” button and let us know your details. We will get back with you promptly.
Product Attributes:
State of the Art Touchscreen controller directs all ARM machine press operations. Accurate, dependable digital dwell time, temperature control, counter functions.
Proprietary exclusive self diagnostic features monitor heating system operations that will notify operators when machine needs service.
Exclusive Dual Pressure pneumatic system with independent air regulators and flow controls allow precise label application pressures.
Teachable solid state registration mark sensor.
Fully adjustable tape sensor location slide system.
Interchangeable presser head system.
24 volt D.C. gear motor
Label cross hair generator for assisting operators with precise garment placement.
Engineered Specifically to meet the specifications of the latest heat transfer label customers.
Specifications:
Heat Block – ”5 x 5” inches (12.70cm x 12.70cm)
Anvil Size – 5”x 7.50” inches (12.70cm x 19.05cm)
Throat Depth – 9” inches (22.88cm)
Electrical:
110 VAC | 9.2 AMPS | 883 WATTS
220 VAC | 5.4 AMPS | 894 WATTS
Pneumatic REQ:
80 PSI incoming air supply
10-80 PSI application pressures
Cylinder stroke 3 inches
Machine Dimensions (Approximate) :
Depth: 16” inches
Width: 40” inches
Height: 35 inches
Weight: 120 pounds
